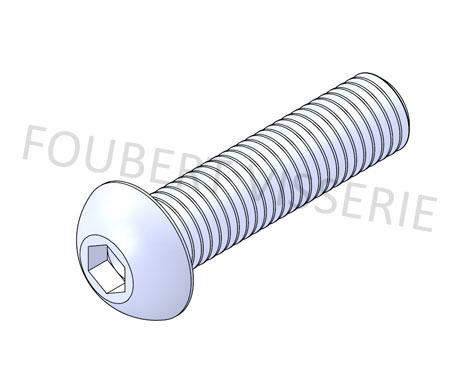

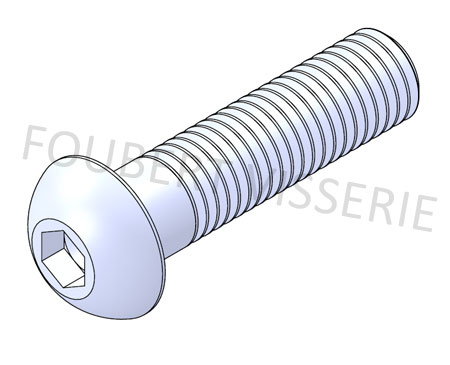

Vis à métaux tête bombée hexagonale creuse

ISO 7380-1

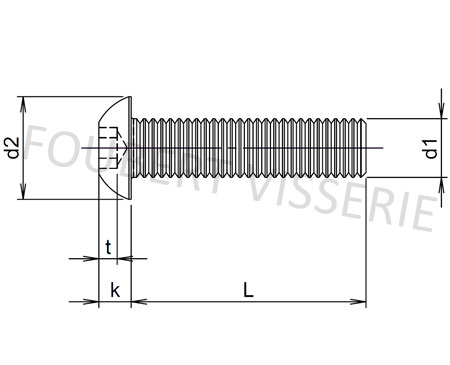

VIS À MÉTAUX TÊTE BOMBÉE HEXAGONALE CREUSE ISO 7380-1

d1

M2

M2,5

M3

M4

M5

M6

M8

M10

M12

d2

3.5

4.5

5.7

7.6

9.5

10.5

14

17.5

21

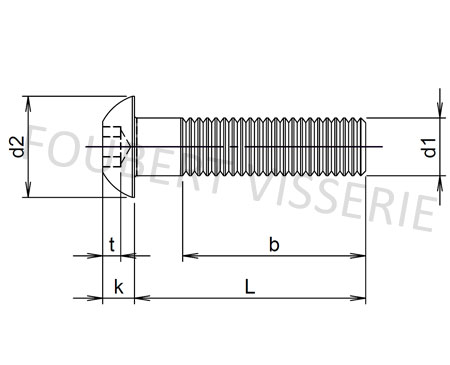

b

16

17

18

20

22

24

28

32

36

k max.

1.3

1.5

1.65

2.2

2.75

3.3

4.4

5.5

6.6

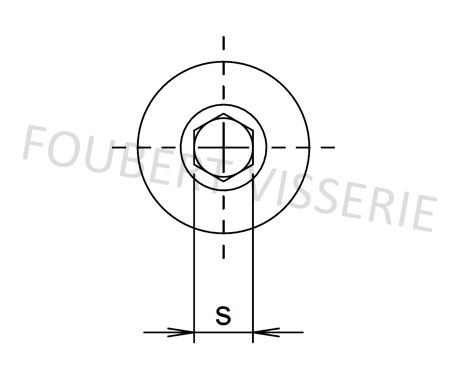

s

1.3

1.5

2

2.5

3

4

5

6

8

t min.

0.6

0.8

1.04

1.3

1.56

2.08

2.6

3.12

4.16

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x

x

x
