Fixations Standard

Vis à métaux tête cylindrique basse hexagonale creuse

DIN 7984

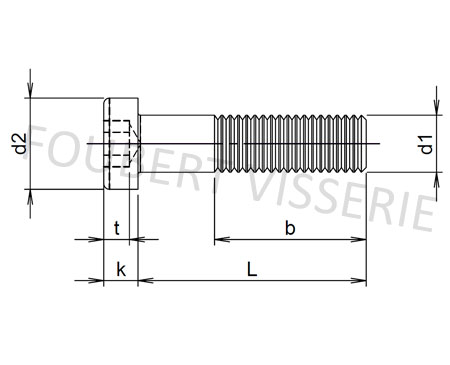

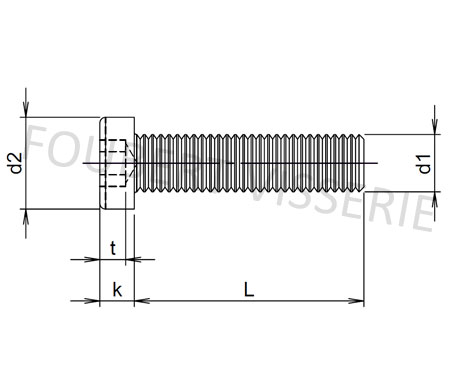

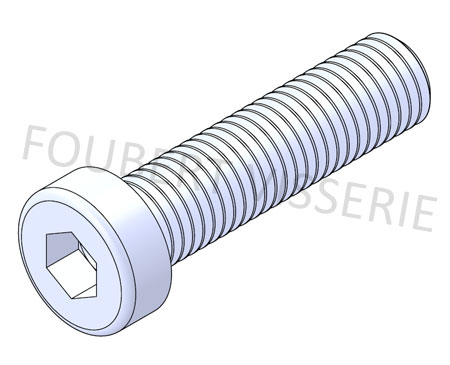

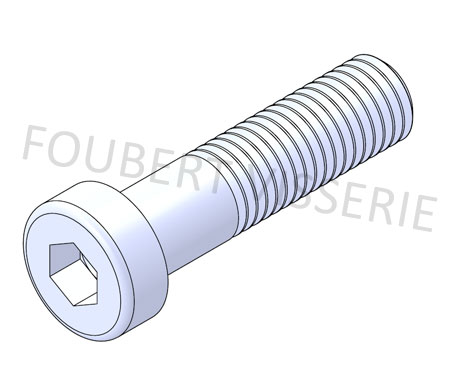

VIS À MÉTAUX TÊTE CYLINDRIQUE BASSE HEXAGONALE CREUSE
DIN 7984

d1

M3

M4

M5

M6

M8

M10

M12

M16

M20

M24

d2

5,5

7

8,5

10

13

16

18

24

30

36

b

12

14

16

18

22

26

30

38

46

54

k

2

2,8

3,5

4

5

6

7

9

11

13

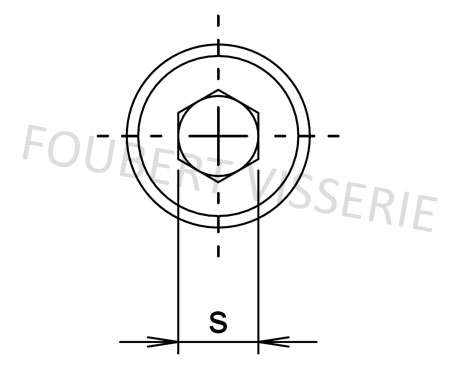

s

2

2,5

3

4

5

7

8

12

14

17

t

1,5

2,3

2,7

3

3,8

4,5

5

5,5

7,5

8

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x
