Fixations Standard

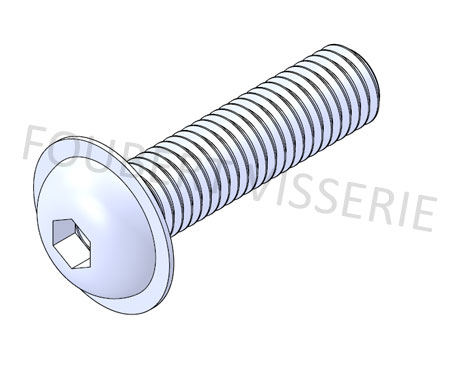

Vis à métaux tête bombée hexagonale creuse à embase

ISO 7380-2

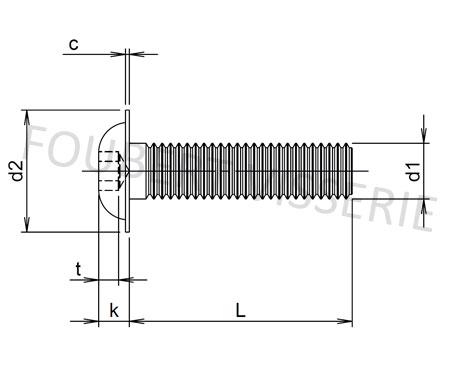

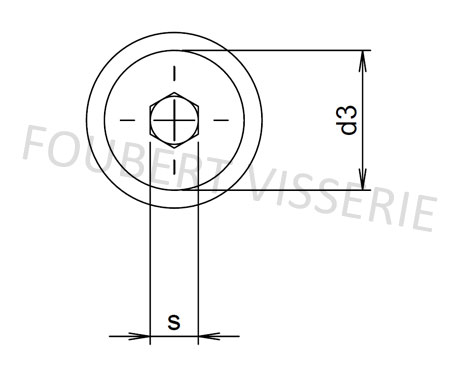

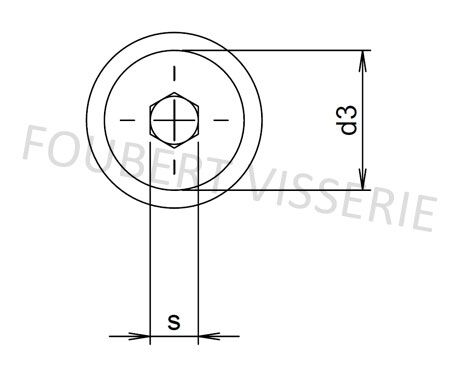

VIS À MÉTAUX TÊTE BOMBÉE HEXAGONALE CREUSE À EMBASE ISO 7380-2

d1

M3

M4

M5

M6

M8

M10

M12

d2

7

9,4

11,6

13,6

17,8

22

25

d3

5,3

7,3

9,2

10

13,7

17,5

21

k

1,7

2,2

2,8

3,3

4,4

5,5

7

c

0,7

0,8

1

1,1

1,5

1,7

2,4

t

1,05

1,35

1,8

2,1

2,8

3,4

4,2

s

2

2,5

3

4

5

6

8

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x

x
