Ecrou haut HH
ou contactez nos équipes au 02 32 63 34 34

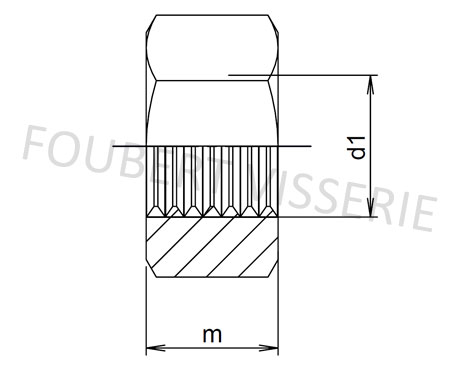

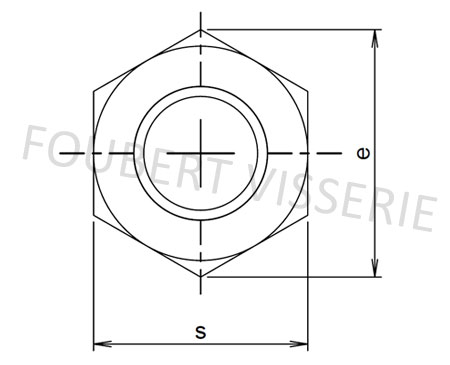

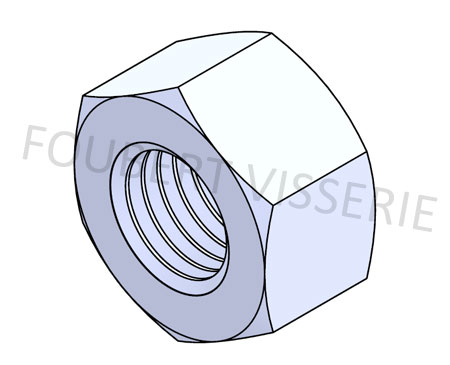

ECROU HAUT HH ISO 4033
d1 |
e min. |
s |
m max. |
M2 |
4,6 |
4 |
2 |
M2,5 |
5,8 |
5 |
2,5 |
M3 |
6,4 |
5,5 |
3 |
M4 |
8,1 |
7 |
4 |
M5 |
9,1 |
8 |
5 |
M6 |
11,5 |
10 |
6 |
(M7) |
12,7 |
11 |
7 |
M8 |
15 |
13 |
8 |
M10 |
19,6 |
17-16* |
10 |
M12 |
21,9 |
19-18* |
12 |
(M14) |
25,4 |
22-21* |
14 |
M16 |
27,7 |
24 |
16 |
(M18) |
31,2 |
27 |
18 |
M20 |
34,6 |
30 |
20 |
M24 |
41,6 |
36 |
24 |
M30 |
53,1 |
46 |
30 |
() Ne sont pas dans ISO 4033
*Nouveaux surplats selon norme Européenne ISO.
Inox
|
Inox
|
Acier doux |
Acier
|
Acier
|
Acier
|
Zingué blanc |
Cuivre |
Nylon |
Laiton |
Alu. |
x |
x |
x |
x |
x |
x |
x |
