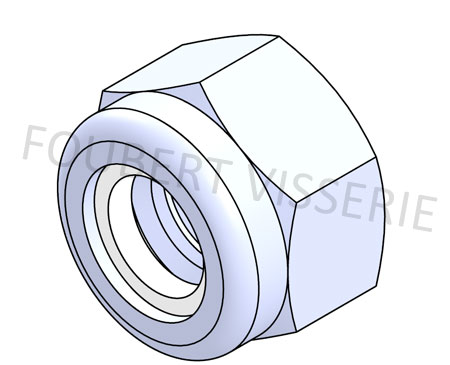

Ecrou frein bague nylon haut
ou contactez nos équipes au 02 32 63 34 34

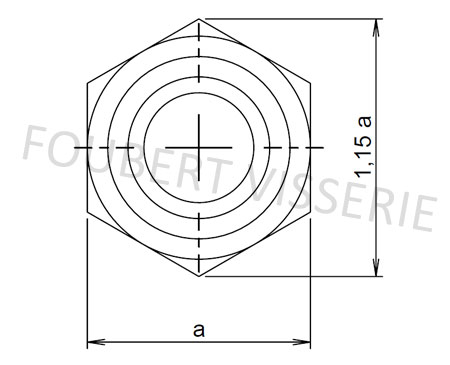

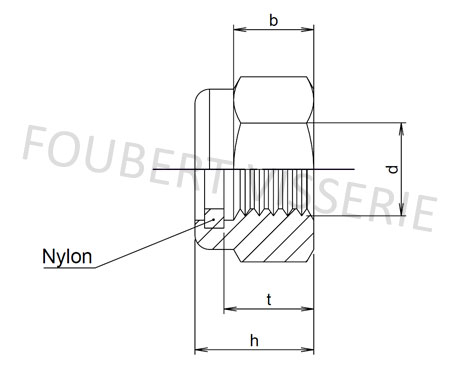

ECROU FREIN BAGUE NYLON HAUT DIN 982
d1 |
h |
e min. |
s |
t |
M5 |
6,3 |
8,79 |
8 |
4,4 |
M6 |
8 |
11,05 |
10 |
4,9 |
M8 |
9,5 |
14,38 |
13 |
6,44 |
M10 |
11,5 |
18,9 |
17-16* |
8,04 |
M12 |
14 |
21,1 |
19-18* |
10,37 |
M14 |
16 |
24,49 |
22-21* |
12,1 |
M16 |
18 |
26,75 |
24 |
14,1 |
M18 |
20 |
29,56 |
27 |
15,1 |
M20 |
22 |
32,95 |
30 |
16,9 |
M22 |
25 |
35,03 |
30-34* |
18,1 |
M24 |
28 |
39,55 |
36 |
20,2 |
*Nouveaux surplats selon norme Européenne ISO.
Inox
|
Inox
|
Acier doux |
Acier
|
Acier
|
Acier
|
Zingué blanc |
Cuivre |
Nylon |
Laiton |
Alu. |
x |
x |
x |
x |
x |
