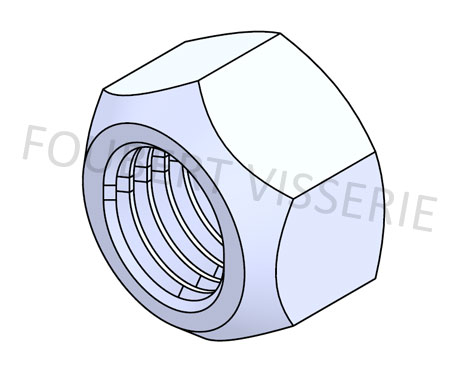

Ecrou autofreiné tout metal

DIN 980 V – ISO 7042

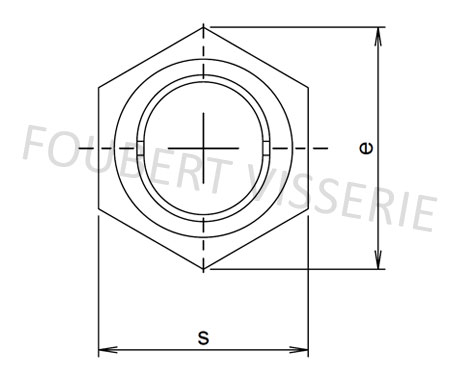

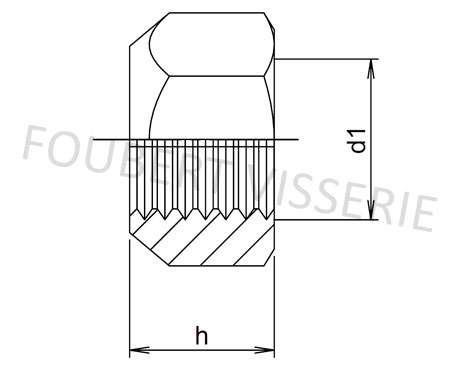

ECROU AUTOFREINE TOUT METAL DIN 980 V – ISO 7042

d1

h max.

s

e min.

M4

4,2

7

7,66

M5

5,1

8

8,79

M6

6

10

11,05

M8

8

13

14,38

M10

10

17

18,9

M12

12

19

21,1

M14

14

22

24,49

M16

16

24

26,75

M18

18

27

29,56

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x

x

x
