Ecrou à souder hexagonale
ou contactez nos équipes au 02 32 63 34 34

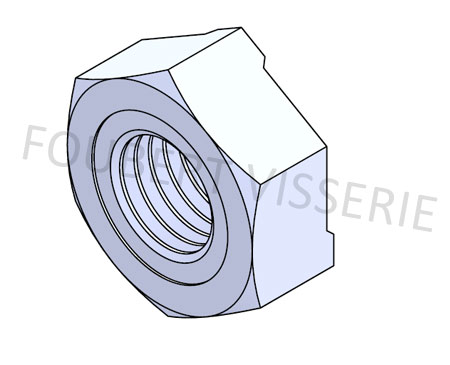

ECROU À SOUDER HEXAGONALE DIN 929

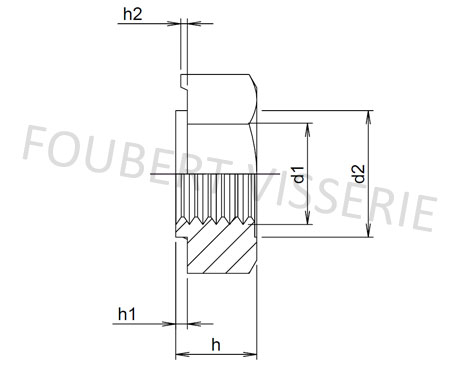

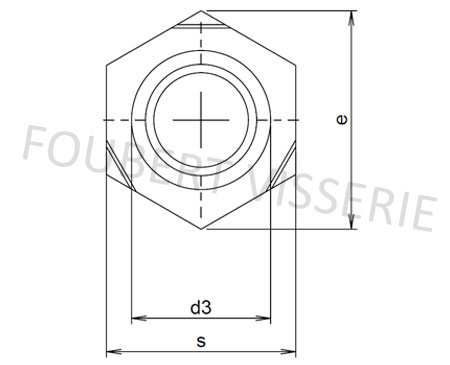

d1 |
d2
|
d3
|
h1 |
h2 |
h |
s |
Ø de perçage H11 |
M3 |
4,5 |
4,5 |
0,55 |
0,25 |
3 |
7,5 |
4,5 |
M4 |
6 |
6 |
0,65 |
0,35 |
3,5 |
9 |
6 |
M5 |
7 |
7 |
0,7 |
0,4 |
4 |
10 |
7 |
M6 |
8 |
8 |
0,75 |
0,4 |
5 |
11 |
8 |
M8 |
10,5 |
10,5 |
0,9 |
0,5 |
6,5 |
14 |
10,5 |
M10 |
12,5 |
12,5 |
1,15 |
0,65 |
8 |
17 |
12,5 |
M12 |
14,8 |
14,8 |
1,4 |
0,8 |
10 |
19 |
14,8 |
M16 |
18,8 |
18,8 |
1,8 |
1 |
13 |
24 |
18,8 |
Inox
|
Inox
|
Acier doux |
Acier
|
Acier
|
Acier
|
Zingué blanc |
Cuivre |
Nylon |
Laiton |
Alu. |
x |
x |
