Ecrou à sertir cylindrique tête plate molete ouvert acier

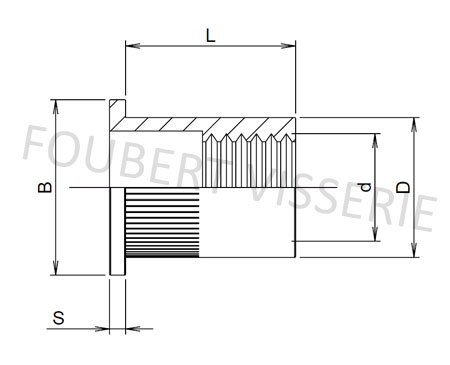

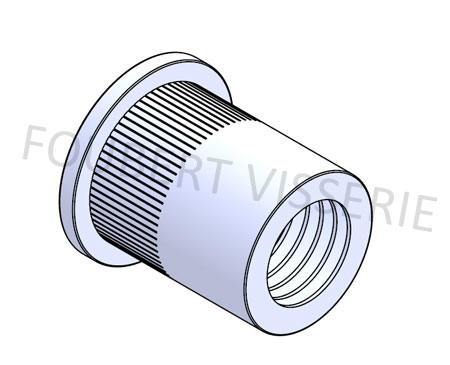

ECROU A SERTIR CYLINDRIQUE TÊTE PLATE MOLETE OUVERT ACIER

d

L

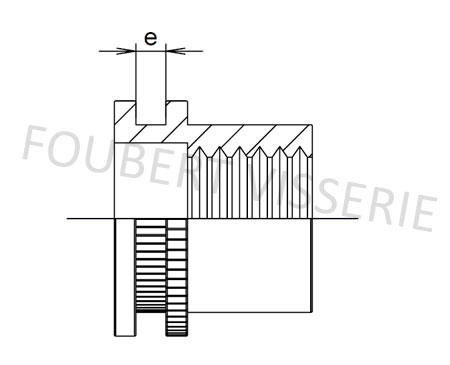

e

Diamètre de perçage +0.5/-0.5

D

B

S

M3

10

0,5-3

5

4,9

6,8

0,8

M4

10,3

0,3-3

6

5,9

8,8

1

M4

11,8

3-4

6

5,9

8,8

1

M5

12,3

0,3-3

7

6,9

9,8

1

M5

15,3

3-4

7

6,9

9,8

1

M6

14,8

0,5-3

9

8,9

11,8

1,5

M6

16,3

3-4,5

9

8,9

11,8

1,5

M8

16,3

0,5-3

11

10,9

14,8

1,5

M8

18,8

3-5,5

11

10,9

14,8

1,5

M10

17,3

0,5-3

12

11,9

15,8

2

M10

22,3

3-6

12

11,9

15,8

2

M12

23,3

1-4

16

15,9

21,8

2

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x
