Ecrou à oreilles matrices forme américaine

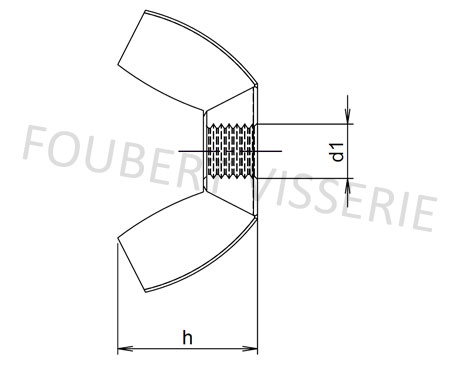

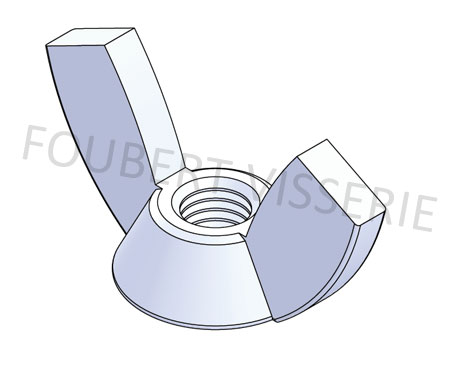

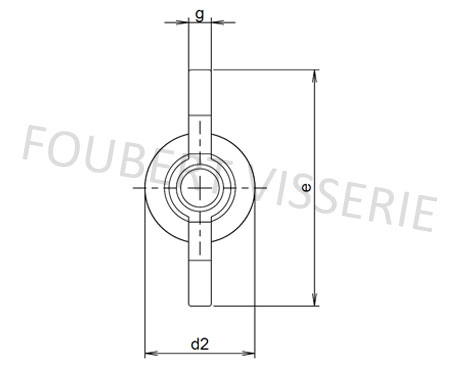

ECROU À OREILLES MATRICES FORME AMÉRICAINE

d1

e max.

h max.

d2

g

M3

19,5

10

8

2

M4

19,5

10

8

2

M5

23

12

10

2,4

M6

28

14,5

12

2,7

M8

31,8

16,8

13,5

3

M10

36,6

20

16

4

M12

49,3

25

22

5

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x

x

x
