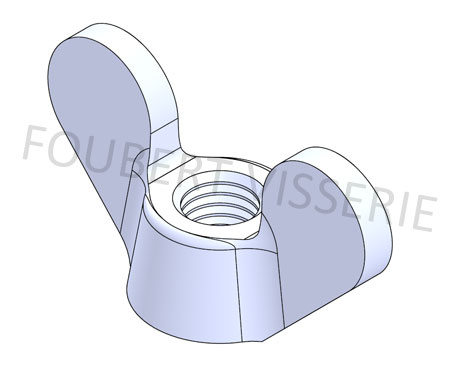

ECROU À OREILLES DIN 315

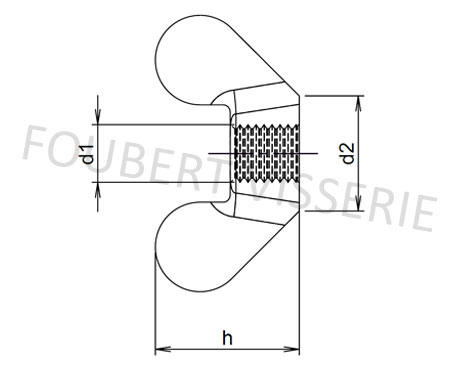

d1 |
d2 max. |

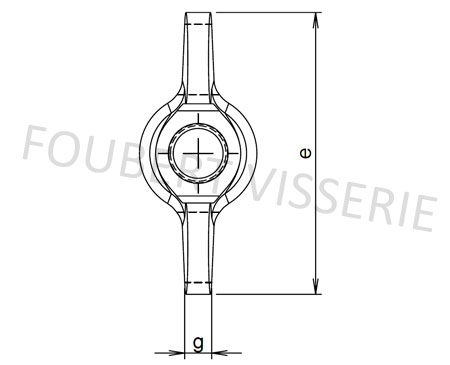

e max. |
g max. |
h max. |
M4 |
8 |
20 |
1,9 |
10,5 |
M5 |
11 |
26 |
2,3 |
13 |
M6 |
13 |
33 |
2,3 |
17 |
M8 |
16 |
39 |
2,8 |
20 |
M10 |
20 |
51 |
4,4 |
25 |
M12 |
23 |
65 |
4,9 |
33,5 |
(M14) |
28 |
72 |
6 |
36 |
M16 |
29 |
73 |
6,4 |
37,5 |
M20 |
35 |
90 |
6,9 |
46,5 |
M24 |
44 |
110 |
9,4 |
56,5 |
() Ne sont pas dans DIN 315
Inox
|
Inox
|
Acier doux |
Acier
|
Acier
|
Acier
|
Zingué blanc |
Cuivre |
Nylon |
Laiton |
Alu. |
x |
x |
x |
x |
x |
