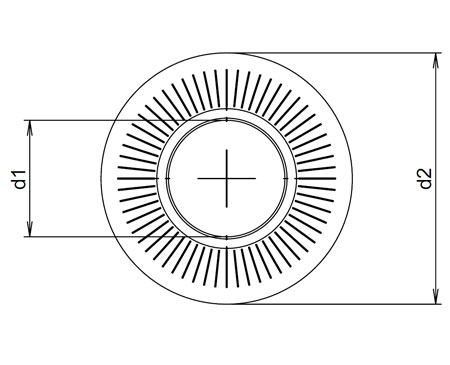

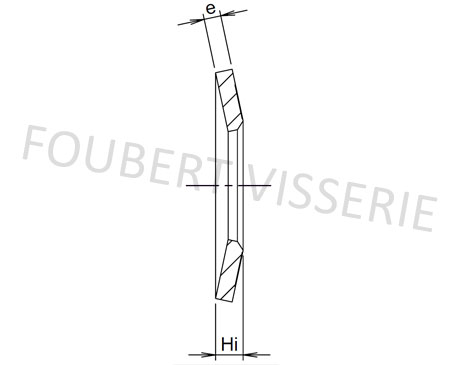

RONDELLE CONTACT CS SÉRIE MOYENNE NFE 25511
M |
d1 min. |
d2 |
Hi max. |
e |
M3 |
3,1 |
8 |
1 |
0,6 |
M4 |
4,1 |
10 |
1,4 |
0,9 |
M5 |
5,1 |
12 |
1,8 |
1,1 |
M6 |
6,1 |
14 |
2,1 |
1,3 |
M8 |
8,2 |
18 |
2,35 |
1,4 |
M10 |
10,2 |
22 |
2,75 |
1,6 |
M12 |
12,4 |
27 |
3,1 |
1,8 |
M16 |
16,4 |
32 |
4,1 |
2,8 |
M20 |
20,5 |
40 |
4,9 |
3,2 |
Inox
|
Inox
|
Acier doux |
Acier
|
Acier
|
Acier
|
Zingué blanc |
Cuivre |
Nylon |
Laiton |
Alu. |
x |
x |
x |
x |
