Fixations Standard

Ecrou à souder carré

DIN 928

ou contactez nos équipes au 02 32 63 34 34

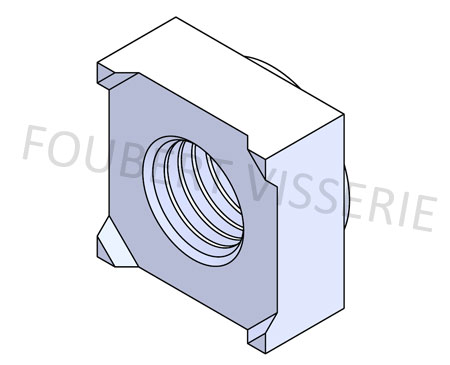

ECROU À SOUDER CARRÉ DIN 928

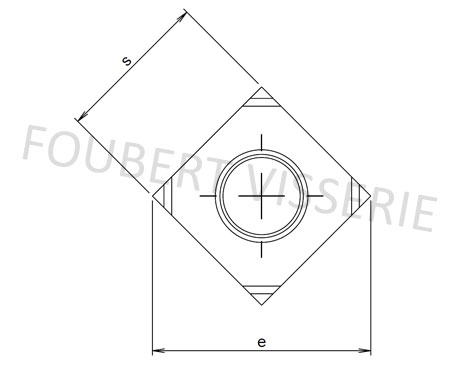

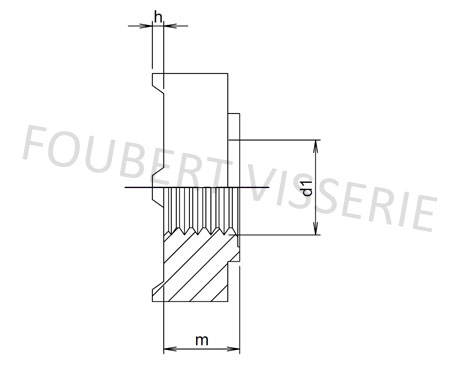

d1

e min.

h ± 0.1

m h14

s h14

Épaisseur tôle min.

Épaisseur tôle max.

M4

9

0,6

3,5

7

0,75

3

M5

12

0,8

4,2

9

0,88

3,5

M6

13

0,8

5

10

0,88

4

M8

18

1

6,5

14

1

4,5

M10

22

1,2

8

17

1,25

5

M12

25

1,4

9,5

19

1,5

5

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x
