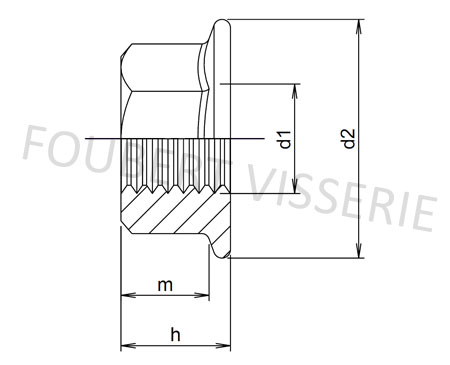

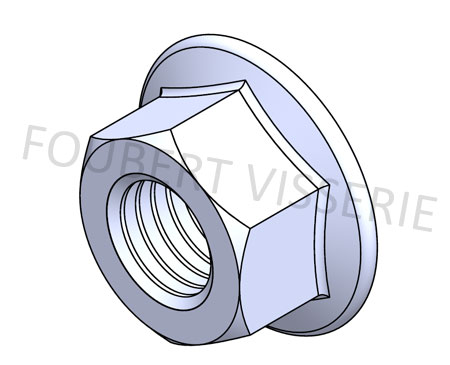

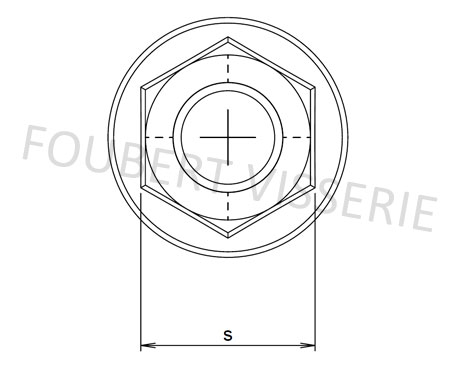

ECROU À EMBASE DIN 6923

d1

d2 max.

s

h max.

m min.

M5

11,8

8

5

2,2

M6

14,2

10

6

3,1

M8

17,9

13

8

4,5

M10

21,8

15

10

5,5

M12

26

18

12

6,7

M14

29,9

21

14

7,8

M16

34,5

24

16

9

M20

42,8

30

20

11,1

Inox
A2

Inox
A4

Acier doux

Acier
8.8

Acier
10.9

Acier
12.9

Zingué blanc

Cuivre

Nylon

Laiton

Alu.

x

x

x

x

x
